PRODUCTS

Trishan Metals Pvt Ltd manufactures low, medium and high carbon cold rolled steel strips and is one of the largest of its kind in Eastern India.

Grades

CR2/CR3/CR4, IS:1079 D/DD
Low carbon

C-30, C-40, C-55, C-62, C-80
Medium and high carbon

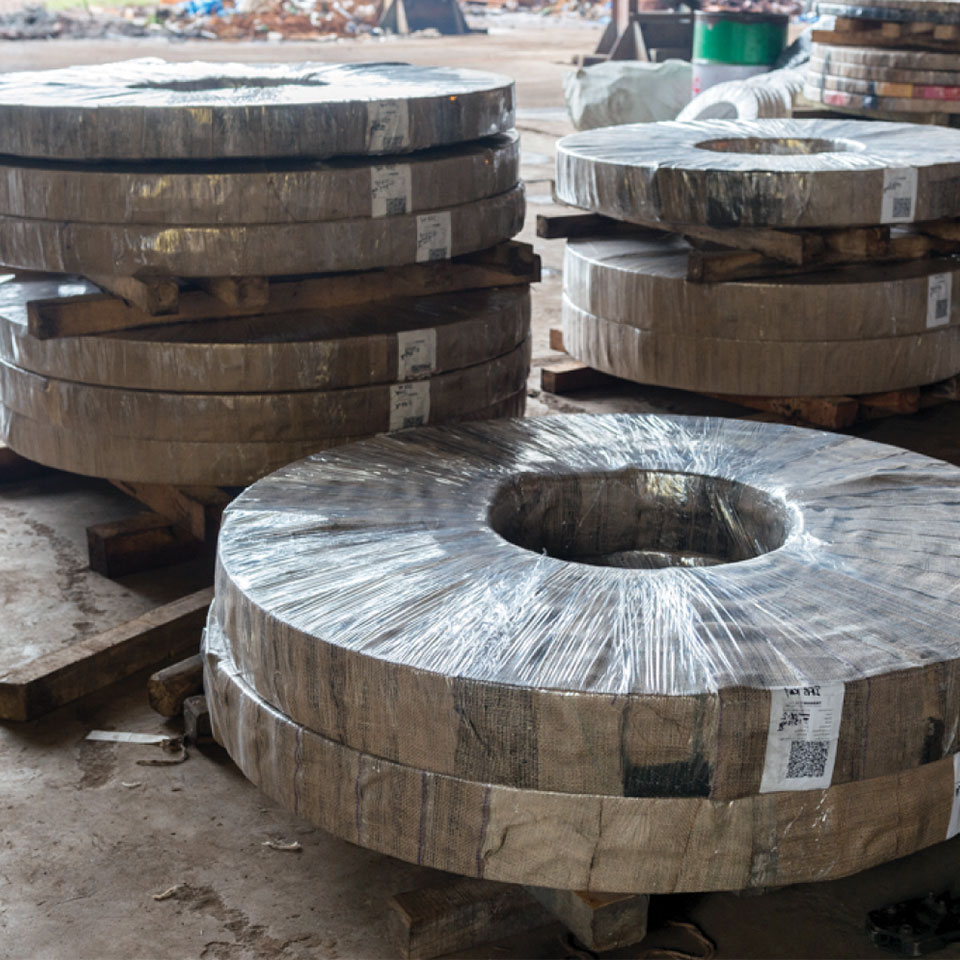

GRADES
Sl No Product Grade Carbon % Standard for Chemistry Cold Rolled Width (mm) Thickness (mm) Confirming to Standard Hardness VPN Number TS Confirming to Standard Slit Width (mm)
1 CRFH MS 0.12 Max BIS:IS513 200–400 0.3–4.0 BIS:IS513 190-220 682 Max BIS IS-513:2008 36–390
2 CRFH C-30 0.3–0.35 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 220–230 712 Max BIS IS-513:2008 36–390
3 CRFH C-40 0.4–0.45 0.4–0.45 200–400 0.3–4.0 BIS:IS7226 230–240 745 Max BIS IS-513:2008 36–390
4 CRFH C-50 0.47–0.55 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 240–250 773 Max BIS IS-513:2008 36–390
5 CRFH C-60 0.59–0.65 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 250–270 835 Max BIS IS-513:2008 36–390
6 CRFH C-70 0.68–0.75 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 260–280 866 Max BIS IS-513:2008 36–390
7 CRFH C-80 0.76–0.82 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 270–300 930 Max BIS IS-513:2008 36–390
8 CRCA MS 0.12 Max BIS IS-513:2008 200–400 0.3–4.0 BIS IS-513:2008 130 Max 370 Max BIS IS-513:2008 36–390
9 CRCA Carbon Steel 0.3–0.35 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 130–140 435 Max BIS IS-513:2008 36–390
10 CRCA Carbon Steel 0.4–0.45 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 140–150 465 Max BIS IS-513:2008 36–390
11 CRCA Carbon Steel 0.47–0.55 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 150–170 530 Max BIS IS-513:2008 36–390
12 CRCA Carbon Steel 0.59–0.65 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 160–175 545 Max BIS IS-513:2008 36–390
13 CRCA Carbon Steel 0.68–0.75 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 170–190 590 Max BIS IS-513:2008 36–390
14 CRCA Carbon Steel 0.76–0.82 BIS:IS7226 200–400 0.3–4.0 BIS:IS7226 170–190 590 Max BIS IS-513:2008 36–390
Product 1
Product 2
Product 3
Product 4

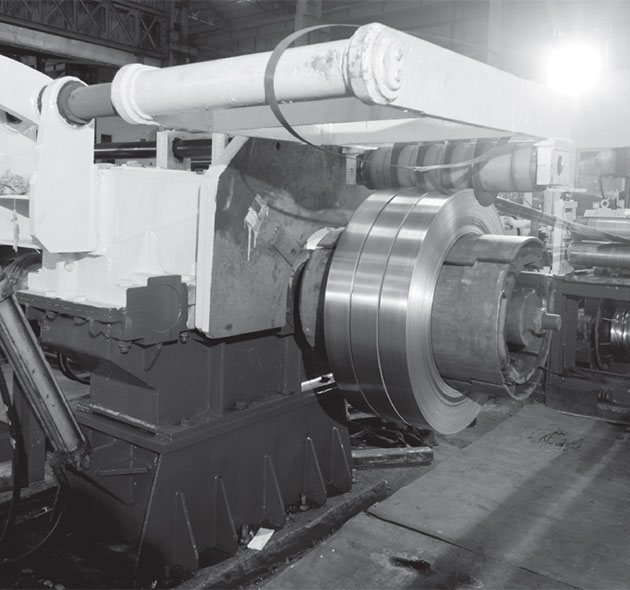

Product 5
Product 6

TYPICAL APPLICATIONS OF THE PRODUCTS

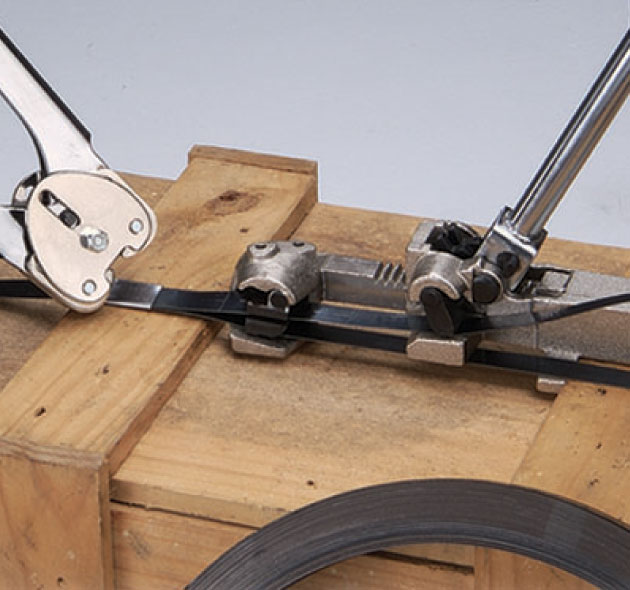

Packing & Straps

Packing & Straps

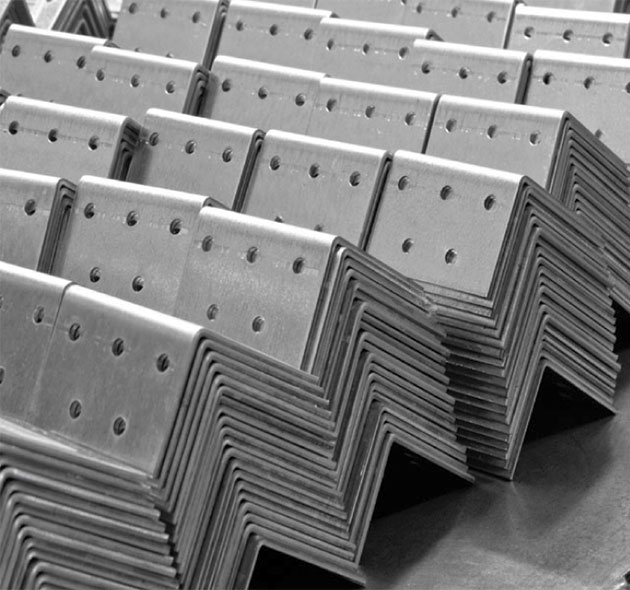

Various Sheet Metal Components

Various Sheet Metal Components

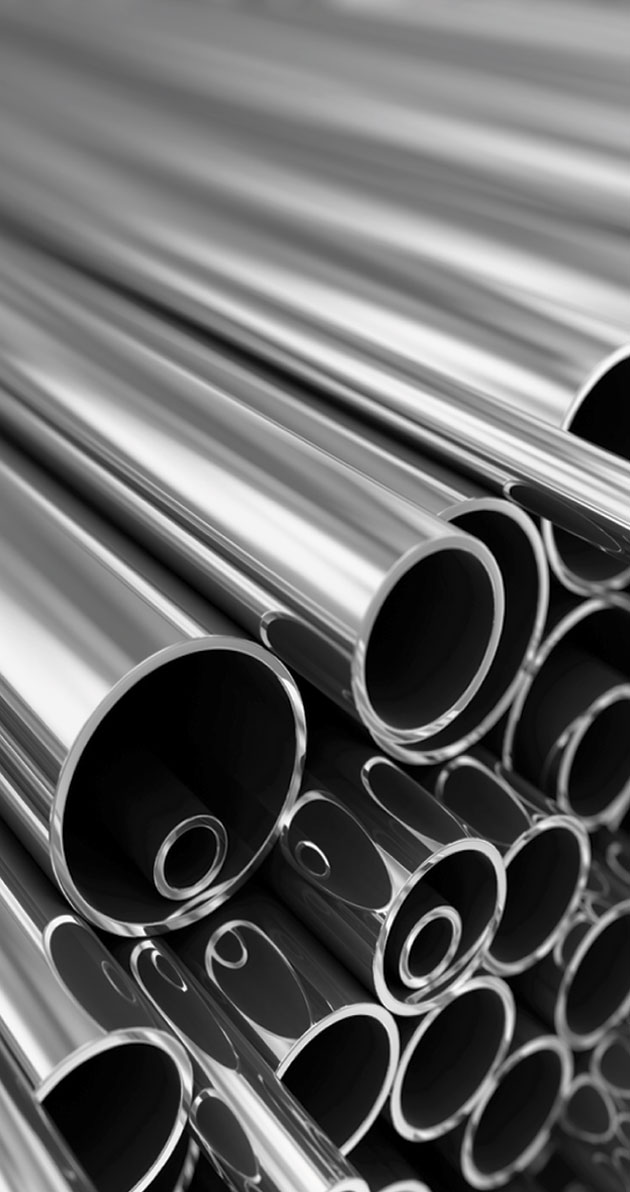

Tube & Pipe Products

Tube & Pipe Products

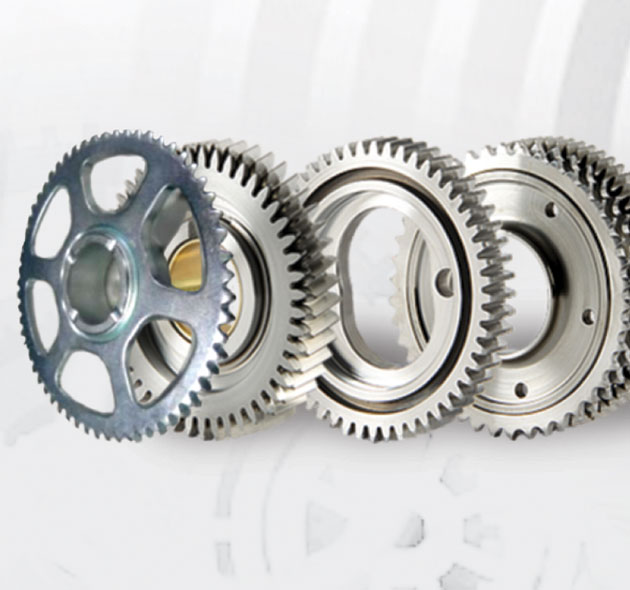

Fine Blanking Components

Fine Blanking Components

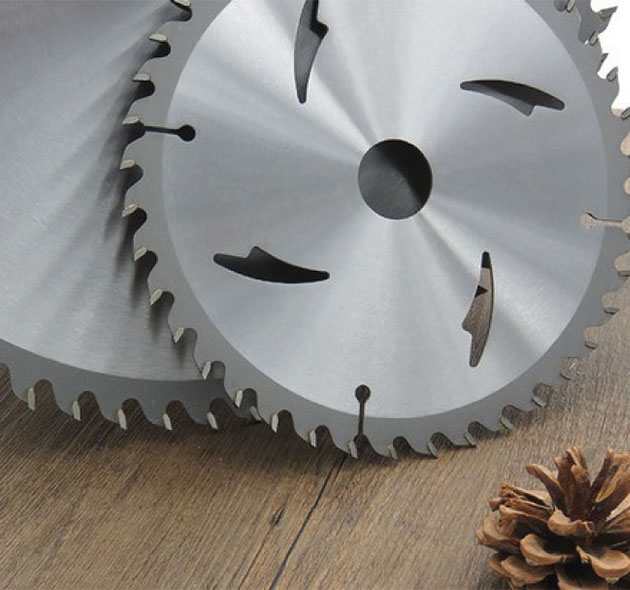

Saw and Blade Products

Saw and Blade Products
